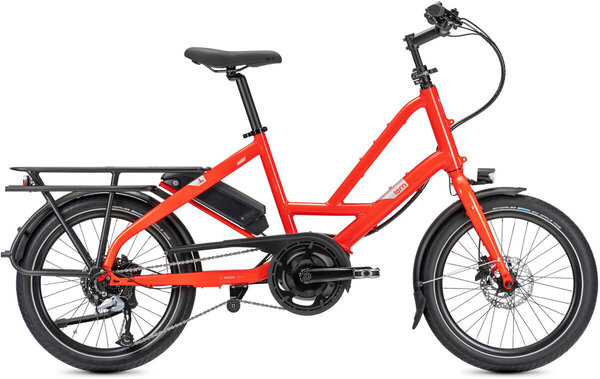

Tern Quick Haul D8

Tern Quick Haul D8
  • Color: Tabasco
$2,499.00
Color:
Tabasco
Please select options Unavailable

Details

What Makes it a D8?

- Bosch Active Line Plus motor provides up to 50 Nm of torque and 270% support

- 1x8-speed Shimano Altus groupset with trigger shifter


Quick Haul Highlights

- Cargo capacity: 50 kg on the rear rack, plus an additional 20 kg with optional front rack

- Fits riders 160 - 195 cm (5’3” - 6’5”), and also riders 145 - 180 cm (4’9” - 5'11") when equipped with a shorter, 350 mm seatpost

- Lots of available kid- and cargo-carrying accessories—easily create your perfect setup

- Ultra-low 490 mm standover height makes (dis)mounting and waiting at stops easier

- Shimano hydraulic disc brakes for reliable stopping power—even when heavily loaded and riding fast

- Proven safe and reliable: frame and fork are EFBE-tested up to the 150 kg (331 lb) Maximum Gross Vehicle Weight

Specs

Frame Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg
Fork Cargo, steel, EFBE approved: 150 kg
Rims Kinetix Comp, for disc
Hubs Shimano disc
Spokes Stainless steel
Tires Schwalbe Big Apple, 55-406, puncture protection, Reflex
Bottom Bracket Motor integrated
Crankset Tern custom, forged 6061-AL crankarm
Shifters Shimano Altus, 1 x 8 spd, trigger
Rear Derailleur Shimano Altus Shadow
Cassette/Freewheel Shimano 11-34T, 8 spd
Chain KMC for eBike, 8 spd
Brakes Shimano, hydraulic disc
Brake Levers Shimano, hydraulic disc
Handlebars Low riser, 31.8, 6061-AL
Tape/Grips Velo ergonomic, lock-on
Stem Speedlifter, 150 mm extension, 3D Forged stem, 31.8
Headset TH, cartridge bearings
Seatpost 31.6 mm, 6061-AL, micro-adjust clamp
Saddle Velo Comfort
Pedals Urban with non-slip surface
Accessories & Extras Aluminum Bell, Chainguard, front light (120 lumens) & rear light- Herrmans, Chromeplastic stainless fenders, Atlas Q Rack, UpperDeck Mount System, Vertical parking, 50 kg capacity
Motor Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery Bosch PowerPack 400
Controller/Display Bosch Purion
Charger Compact Charger, 100-240V, 2A
Total Weight 50.3 lbs

* Subject to change without notice.
