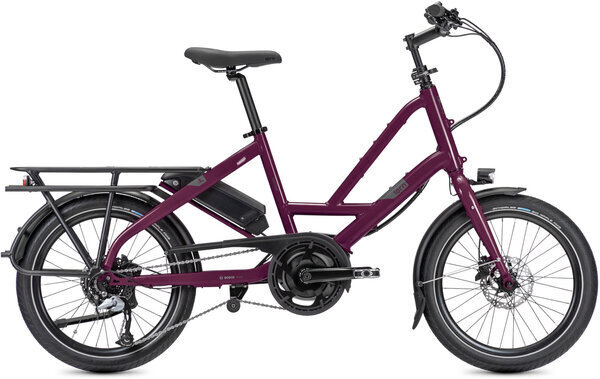

Tern Quick Haul P9 Performance
Details
What Makes it a P9 Performance?
- Bosch Performance Sport motor provides up to 65 Nm of torque and 300% support, max speed up to 28 mph
- 1x9-speed Shimano Alivio groupset with trigger shifter
Quick Haul Highlights
- Cargo capacity: 50 kg on the rear rack, plus an additional 20 kg with optional front rack
- Fits riders 150 - 195 cm (4’11” - 6’5”) tall, with adjustable seatpost and Speedlifter stem (no tools required)
- Lots of available kid- and cargo-carrying accessories—easily create your perfect setup
- Ultra-low 490 mm standover height makes (dis)mounting and waiting at stops easier
- Shimano hydraulic disc brakes for reliable stopping power—even when heavily loaded and riding fast
- Proven safe and reliable: frame and fork are EFBE-tested up to the 150 kg (331 lb) Maximum Gross Vehicle Weight
Specs
| Frame | Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg |
|---|---|
| Fork | Cargo, steel, EFBE approved: 150 kg |
| Rims | Kinetix Comp, for disc |
| Hubs | Shimano disc |
| Spokes | Stainless steel |
| Tires | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
| Bottom Bracket | Motor integrated |
| Crankset | Tern custom, forged 6061-AL crankarm |
| Rear Derailleur | Shimano Alivio Shadow |
| Cassette/Freewheel | Shimano 11-34T, 9 spd |
| Chain | KMC for eBike, 9 spd |
| Brakes | Shimano, hydraulic disc |
| Brake Levers | Shimano, hydraulic disc |
| Handlebars | Low riser, 31.8, 6061-AL |
| Tape/Grips | Velo ergonomic, lock-on |
| Stem | Speedlifter, 150 mm extension, 3D Forged stem, 31.8 |
| Headset | TH, cartridge bearings |
| Seatpost | 31.6 mm, 6061-AL, micro-adjust clamp |
| Saddle | Velo Comfort |
| Pedals | Urban with non-slip surface |
| Accessories & Extras | Aluminum Bell, Chainguard, front light (120 lumens) & rear light- Herrmans, Chromeplastic stainless fenders, Atlas Q Rack, UpperDeck Mount System, Vertical parking, 50 kg capacity |
| Motor | Bosch Performance Sport, 300% Assist, 65 Nm Torque, max speed 28 mph |
| Battery | Bosch PowerPack 400 |
| Controller/Display | Bosch Purion |
| Charger | Compact Charger, 100-240V, 2A |
| Total Weight | 50.7 lbs |
* Subject to change without notice.
