AIMA Big Sur

AIMA Big Sur
Color: Black
Size: Small
Please select options Unavailable

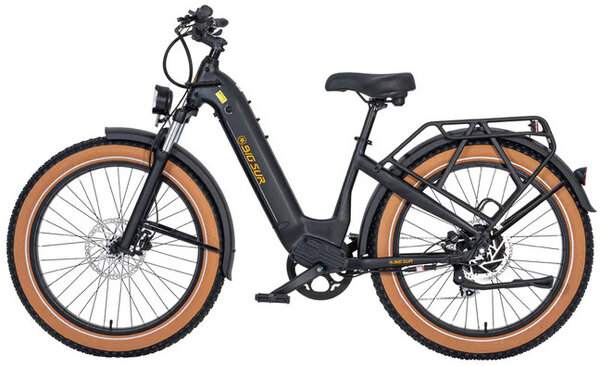

Big Sur is a 26 x 4” fat tire all-terrain e-bike, equipped with a powerful 750W Bafang rear hub motor. Big Sur is Class 2/3, meaning it'll take you up to 20mph using the throttle, and 28mph while pedaling, a torque sensor provides instant intuitive responsiveness. A specially-designed big headlight, extra-large 203mm brake rotors, LG 21700 battery cells, and a full UL2849 certification make Big Sur one of the safest e-bikes on the market. Sporting a bigger 52T crankset for stability at speed and a custom AIMA Comfort XL seat, Big Sur provides riders with a remarkably comfortable and smooth riding experience.


Frame 6061 Single-Butted Aluminum Alloy Frame with Internal Battery
Fork Suspension Fork with 80mm travel, with lockout
Rims Double Wall Aluminum Alloy
Hubs Front Aluminum Alloy Disc Hub
Spokes Black Stainless 12G Front / 12G Rear
Tires 26" x 4" Puncture Resistant
Crankset 170mm w/ 52T
Shifters Shimano 8 Speed
Rear Derailleur Shimano Altus 8 Speed
Chain 130 Link, 8 Speed
Brakes Tektro Hydraulic Disc Brakes
Rotors 203 mm Rotor Front/Rear
Handlebars Aluminum Alloy Double Wall, 31.8mm, 680mm
Tape/Grips Ergonomic Comfort
Stem Threadless, 31.8mm, 7 Degree Rise, Ext 75mm
Headset Sealed Bearing Headset
Seatpost Aluminum Alloy, 30.4mm 2-Bolt Clamp
Saddle AIMA Comfort, 280mm*270mm Saddle
Pedals 9/16' Alloy Platform
Accessories & Extras Rear Rack MIK HD compatible
Motor 750W (Rated), 48V Brushless Rear Hub Motor, Torque Sensor
Battery Removable Internal Lithium-ion 48V, 15Ah (720Wh) with LG M50LT 21700 cells
Controller/Display Color LCD, Smart Easy-to-Read Display with Backlight
Charger 48V 3 Amp Fast Charger, about 5 Hours to a Full Charge

* Subject to change without notice.
